10 Inches CNC Power Chuck Solid 250mm 3 Jaw Hydraulic Lathe Chucks

Price : negotiable

Place of Origin : China

Brand Name : H.SON

MOQ : 1

Packaging Details : Different packaging methods are adopted according to different modes of transport.

Payment Terms : Western Union, MoneyGram, T/T

Contact Now

Hot Selling Solid 250mm 10 Inches Cnc Power Chuck 3 Jaw Hydraulic Lathe Chuck

10 Inches CNC Power Chuck Solid 250mm 3 Jaw Hydraulic Lathe Chucks

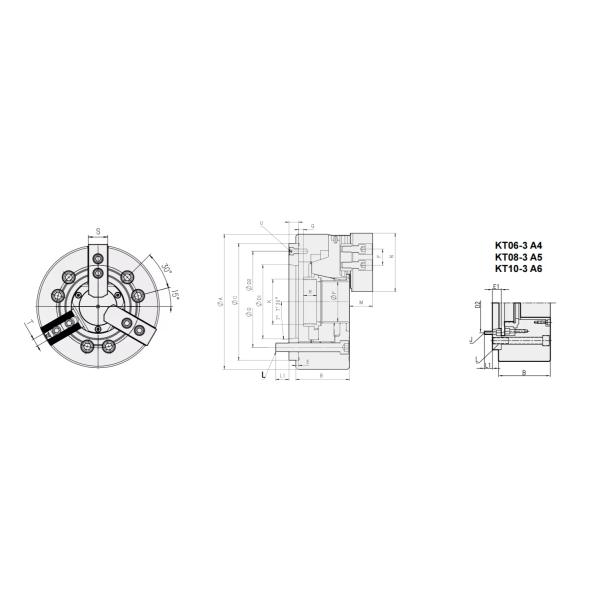

Size parameter
Spec. A B C D D1 D2 E E1 F G1 G2 H
KT10-3 A6 254 100 220 171.4 106.38 133.4 5 28 75 9 -10 25
KT10-3 A8 254 100 220 171.4 139.72 190 5 18 75 9 -10 25
spec. Kmax. L L1 M N P S T U A1 6-M1
KT10-3 A6 M85×2 6-M16 22 18 43 110 30 40 16 6-M12 102 M10
KT10-3 A8 M85×2 6-M16 22 24 43 110 30 40 16 3-M8 102 M10
Performance parameter
Spec. Plunger
stroke		 Jaw stroke
(Dia.)		 Chucking Dia.mm Max. Chucking Dia.mm Min. Max.D.B.pull Max.clamping
force		 Max.speed Kg.m2 Weight Matching cyl. Max.pressure
Mpa(kgf/cm2)
KT10-3 A6 19 8.8 254 31 42.6(4380) 110.7(11300) 4200 0.33 34.5 41.5 TK1075 2.7(27)
KT10-3 A8 19 8.8 254 31 42.6(4380) 110.7(11300) 4200 0.33 34.5 40 TK1075 2.7(27)


Product Tags:

10 Inches CNC Power Chuck



250mm CNC Power Chuck



3 Jaw hydraulic lathe chucks
